Kettle Temperature Control Switch

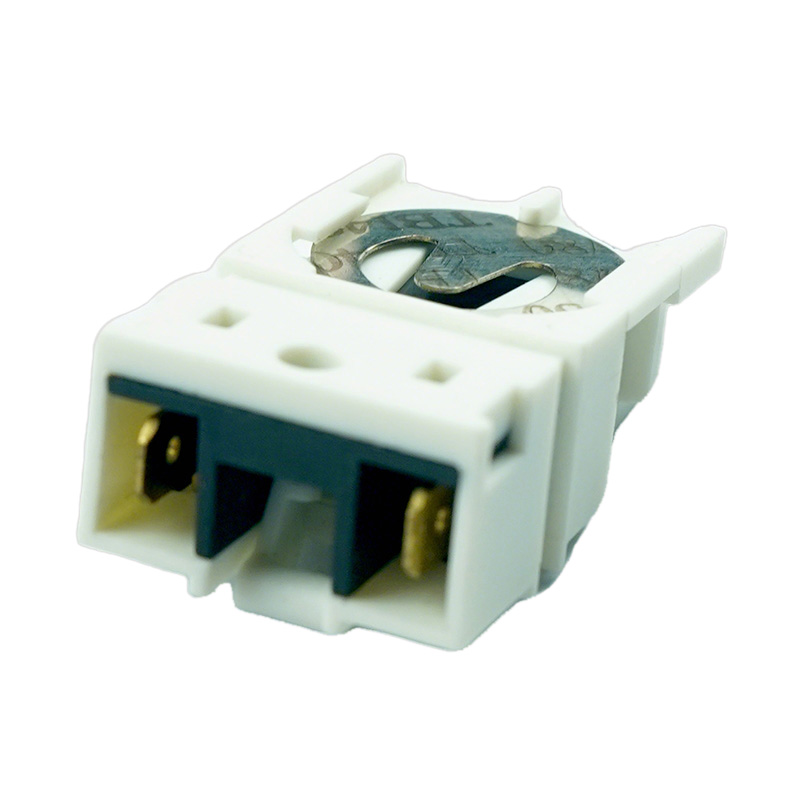

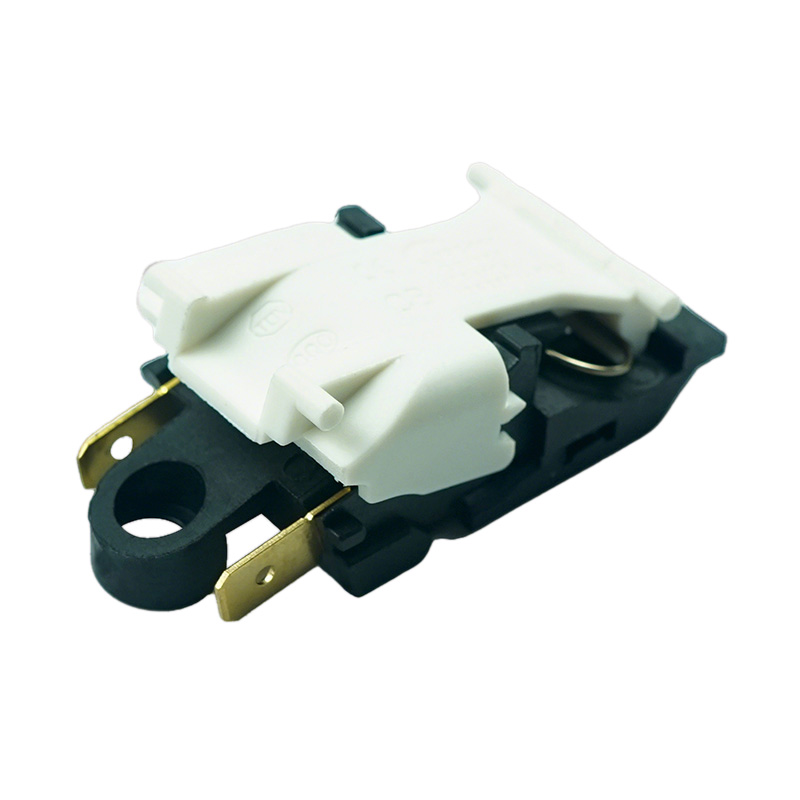

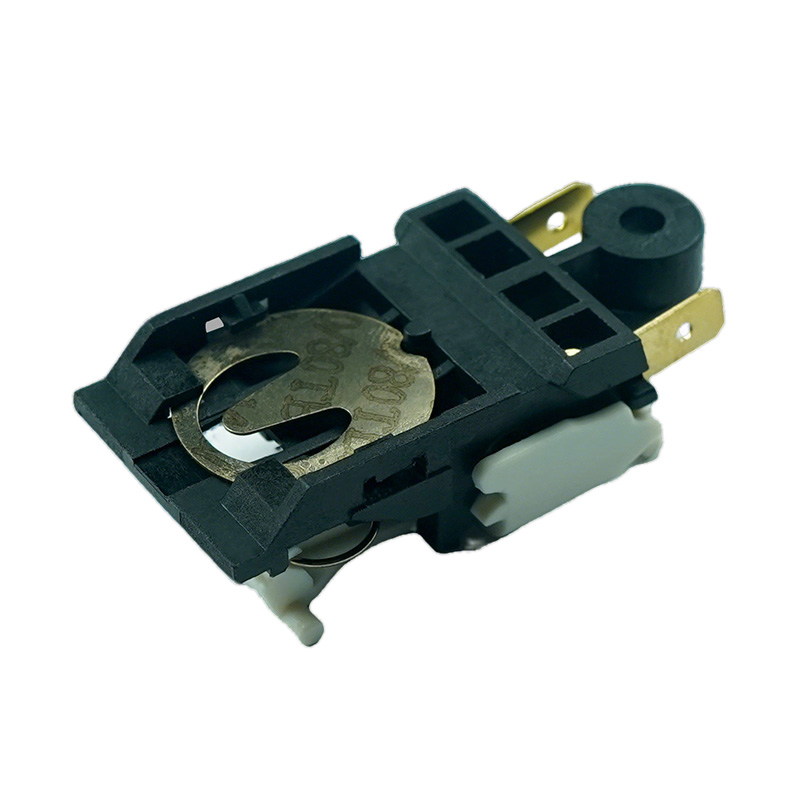

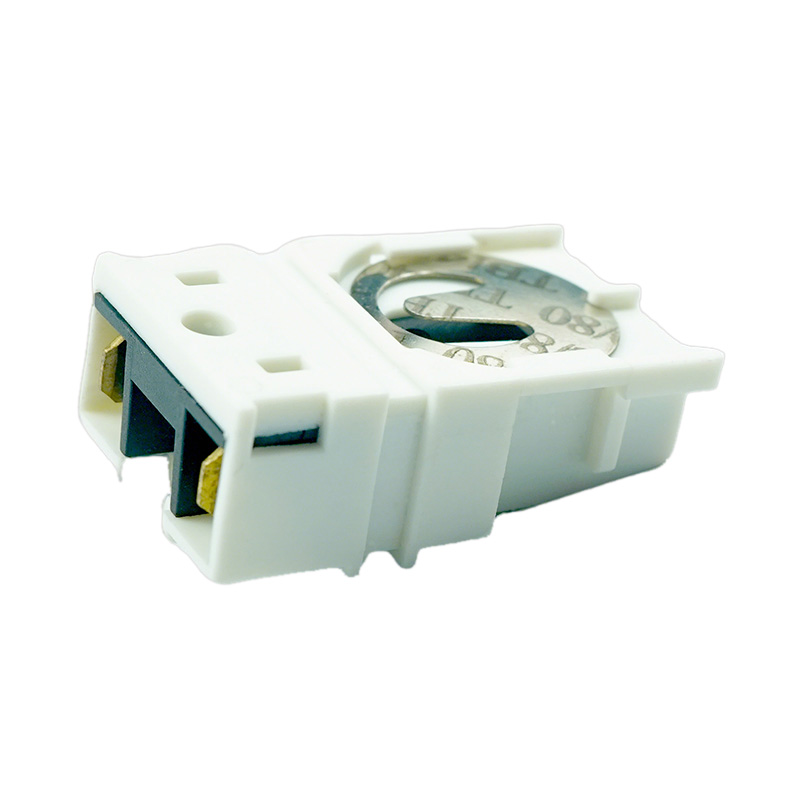

Qianxun's steam kettle thermostat switch exemplifies precision-engineered thermal control, tailored specifically for automatic shut-off functionality in electric kettles. Operating on the fundamental principle of bimetallic expansion, the thermostat employs a disc composed of two metals, each exhibiting distinct thermal expansion rates. As steam enters the thermostat's chamber, it impinges directly on the bimetallic element. Upon reaching the predetermined temperature—typically close to the boiling point—the disc bends until it "snaps" abruptly, opening the contact and cutting power to the heating element. This rapid snap action reduces arcing and ensures a clear transition between on and off states, attributes essential in high-power, high-moisture environments

Material choice further enhances durability. The bimetallic strip is usually constructed from a copper-nickel alloy bonded to stainless steel or brass, materials selected for consistent expansion over thousands of cycles. These discs are often nickel-plated to resist oxidation. Contacts, which endure significant wear, are typically silver-plated to sustain conductivity and reduce erosion. The housing is molded from reinforced phenolic or polyamide resins, providing insulation, steam resistance, and mechanical rigidity under repeated heating cycles.

For extra safety, Qianxun offers multiple mechanisms. Beyond the primary snap disc, a secondary disc may act as an over-temperature backup. In some variants, a thermal fuse is integrated to permanently cut the circuit at an elevated temperature if both bimetal discs fail. This layered approach aligns with appliance safety standards—IEC 60730 and UL 376—stressing redundancy and fail-safe architecture.

Manufacturing consistency is assured through modern techniques. Automated optical inspection systems monitor disc curvature, pusher alignment, and spring preload during assembly. Electrical tests verify contact resistance and insulation integrity, while temperature chambers simulate high-humidity steam environments to confirm lifecycle reliability. Testing protocols often exceed 10,000 cycles, mirroring a typical kettle's estimated five-year lifespan.

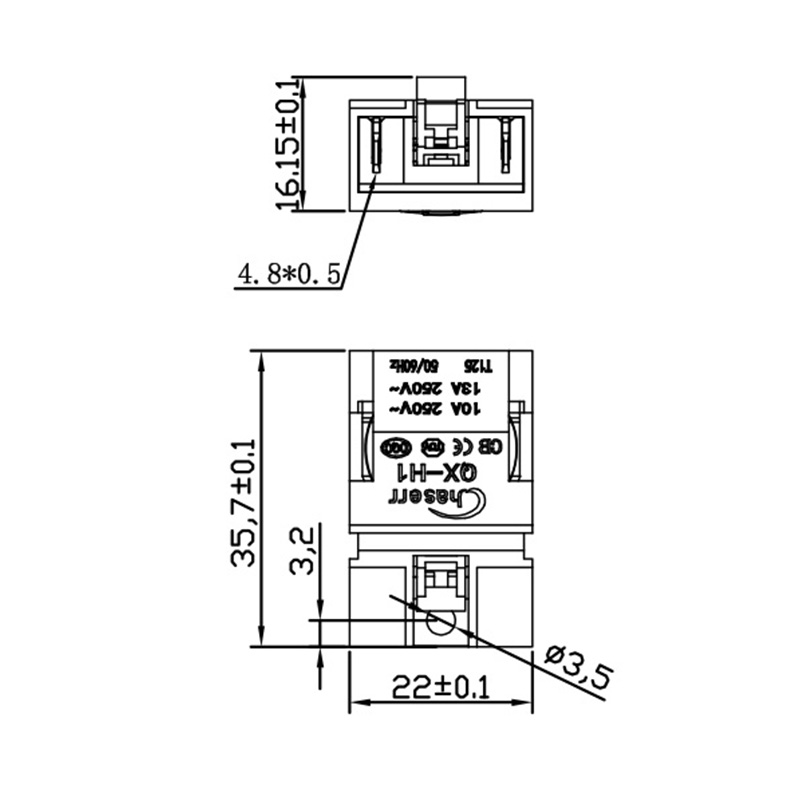

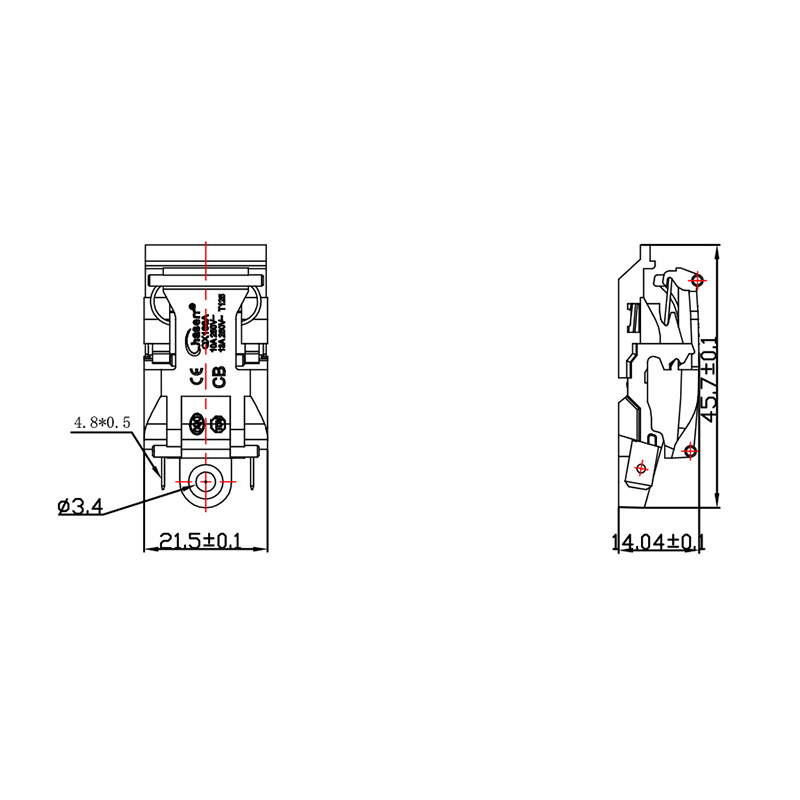

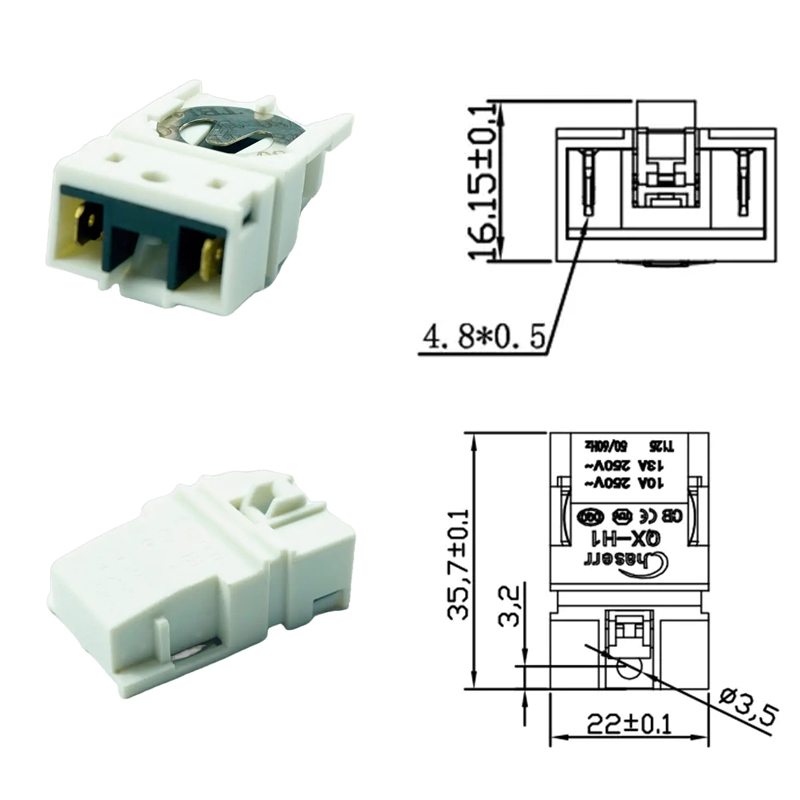

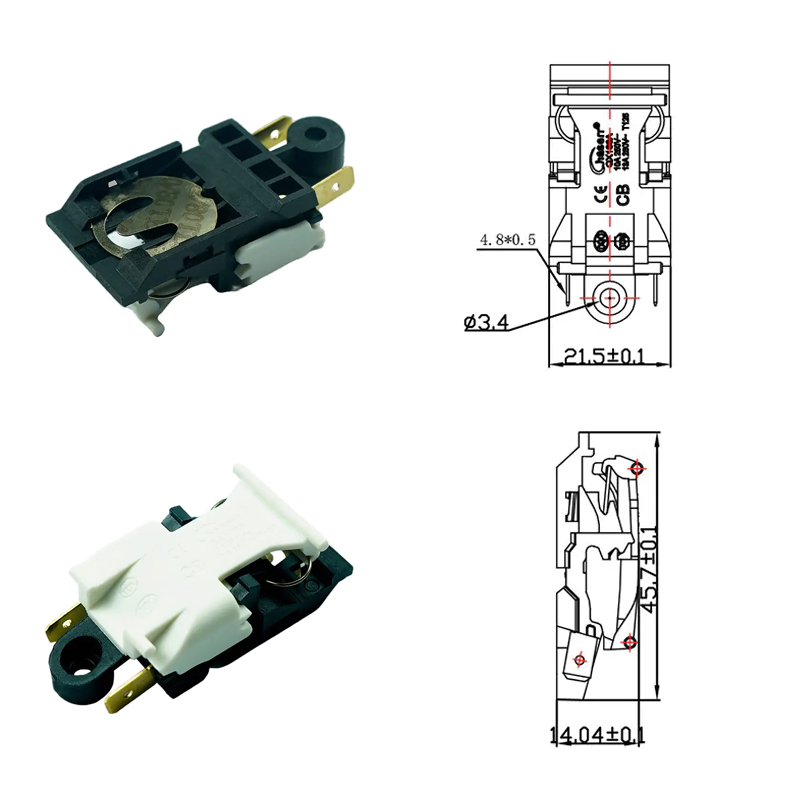

Installation design reflects application-specific engineering. The thermostat features a steam channel interface to ensure the bimetal strip consistently receives sufficient steam for actuation without overheating or stalling. Mounting options include screw tabs and snap-lock configurations, enabling secure integration within kettle steam chambers. Terminal design is also critical: brass or copper alloy terminals are tin- or nickel-plated to lower resistance and prevent corrosion, while PCB-compatible versions facilitate efficient assembly.

From a tooling perspective, Qianxun supports OEM flexibility. Steam kettle manufacturers can select thermostats with specific cut-off temperatures, contact ratings (ranging from 10 A to 16 A at 250 V AC), or unique mechanical interfaces. Adjustable models even offer redialled cut-off points for special kettle functions—such as rapid-boil or warm-hold modes. This eliminates multiple SKUs, simplifying inventory and assembly processes.

Ultimately, the integration of Qianxun's thermostat delivers reliable performance in everyday use. As steam accumulates in the kettle chamber, it warms the bimetallic disc until the switch fires with a distinct click. Once the kettle cools, the disc resets, restoring power readiness. This seamless loop is what ensures that kettles consistently shut off at the boiling point, no matter the altitude or ambient temperature variations.

Qianxun's steam kettle thermostat switch represents a fusion of materials science, mechanical precision, and production quality control. It fulfills essential functions—automatic power cut-off at boiling, prevention of dry heating, and layered safety mechanisms—while conforming to global regulations and operational reliability demands. As a thermostat manufacturer, I recognize the depth of engineering that goes into such a product and its critical role in delivering safe, efficient, and dependable electric kettle performance worldwide.
