Universal Kettle Thermostat Coupler

Qianxun's two-piece kettle thermostat coupler is a thoughtfully engineered subsystem that plays a pivotal role within the thermal control assembly of electric kettles. This component serves as the essential bridge for electrical continuity between the thermostat switch and the heating element assembled in the kettle's base, while delivering features that optimize both production efficiency and operational reliability.

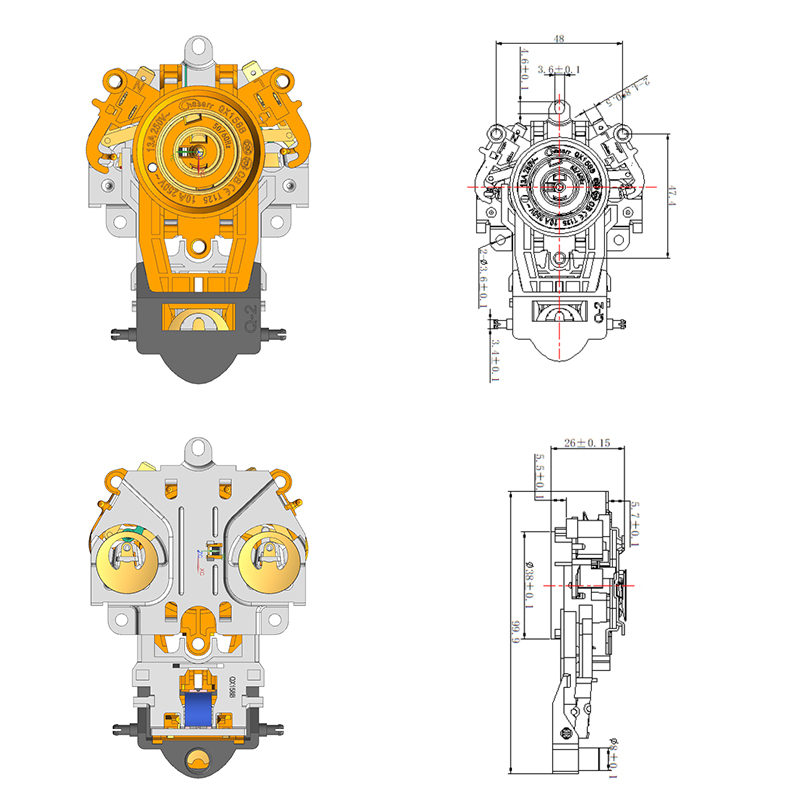

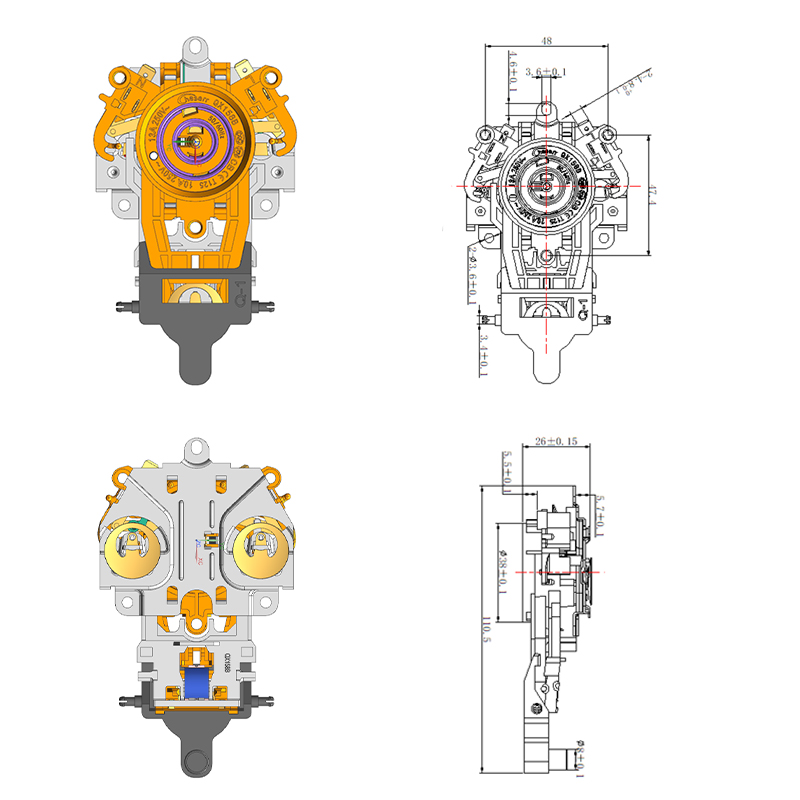

From an OEM manufacturing standpoint, coupling the thermostat with the base connector in two separate parts rather than a single integrated unit offers significant advantages. Each piece can be produced with materials and tolerances tailored to its mechanical and electrical responsibilities. The upper thermostat mount can be optimized for exposure to steam and heating duty cycles, while the base coupler can be designed for ergonomic assembly and sustaining repeated hot‑plug insertions. This modular design enables thermostats and couplers to be matched, replaced, or upgraded independently.

At the heart of the coupler's design are high-conductivity terminals crafted from brass or copper alloys, typically plated with tin or nickel. This plating ensures both oxidation resistance and consistently low contact resistance—typically within the milliohm range—to support current loads of up to 16 A at 250 V AC. Maintaining such low resistance is crucial in preventing excessive heating at the terminal interface, particularly in high‑power kettle scenarios. Quality electrical coupling also preserves voltage and supports consistent boil times under varying supply conditions.

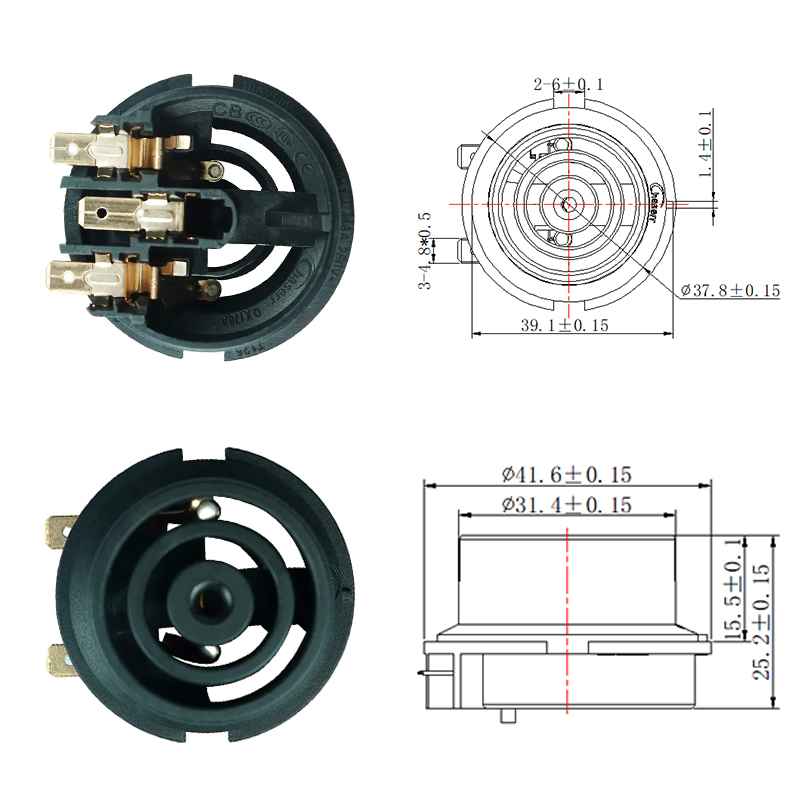

Mechanically, the coupler is molded from robust insulating plastics such as glass‑filled nylon or phenolic resin, known for their resistance to steam, high temperatures, and mechanical stress. The design typically incorporates keyed alignment features, snap‑fit or screw‑lock mechanisms, and audible or tactile engagement clicks to confirm correct seating. These mechanical cues are especially valuable in automated assembly lines, where rapid and mistake‑free installation is essential. Furthermore, the two‑piece setup allows assembly operators to attach the coupler to the kettle base, then insert the thermostat assembly as a separate step, aligning terminations precisely without placing early steam stress on the thermostat components.

The coupler's structural design also incorporates internal spacing and channels that preserve dielectric strength even in moist conditions, preventing flashover or corrosion-related failures. Some models are enhanced with seals or labyrinth paths that help manage steam ingress, directing condensation away from electrical contacts.

advantages. If the thermostat requires replacement after a failure, the base coupler can remain in place, reducing repair costs and environmental waste. It also allows for hot-swappable replacement during product servicing. This modularity aligns with modern sustainability and circular‑economy goals by reducing the amount of plastic replaced and reducing overall waste.

Consistent production quality is achieved through advanced manufacturing processes. Inserted terminals are placed into the molded housing via precision tools, often secured through press fitting or ultrasonic welding to avoid movement during use. Automated testing stations measure pull‑out force, contact resistance, and dielectric breakdown voltage. Final parts may undergo steam aging and cycling tests—lasting tens of thousands of cycles—to ensure reliability under real‑world kettle usage. These tests simulate repeated boil‑to‑cool events, verifying mechanical and electrical endurance over the product's lifetime.

Qianxun's two-piece kettle thermostat coupler exemplifies robust engineering focused on safety, manufacturability, maintainability, and product flexibility. It enables precise electrical connection, efficient assembly, and facilitates servicing. For kettle manufacturers, this design offers a reliable and adaptable solution that aligns with global standards and supports high-volume production, lifecycle servicing, and sustainable product practices.
