Water Supply Kettle Thermostat Coupler Base

Automatic water‑supply smart kettle thermostat coupler base represents a significant advance in kettle coupling technology, integrating primary power transfer, smart water‑level sensing, and modular serviceability, all within a single engineered component. At its core, the coupler base performs a crucial role: it connects the kettle's heating element to the thermostat while simulta­neously enabling smart detection of water presence, preventing operation in unsafe conditions, and contributing to the development of feature‑rich, reliable appliances.

The conductive pathways typically utilize brass or copper alloy inserts, plated with tin or nickel, achieving milliohm‑level resistance and resisting oxidation over many heating cycles. These inserts are supported with spring‑loaded mechanisms to sustain firm electrical continuity even as kettles are moved or lifted, which is vital for maintaining performance and avoiding intermittent power loss.

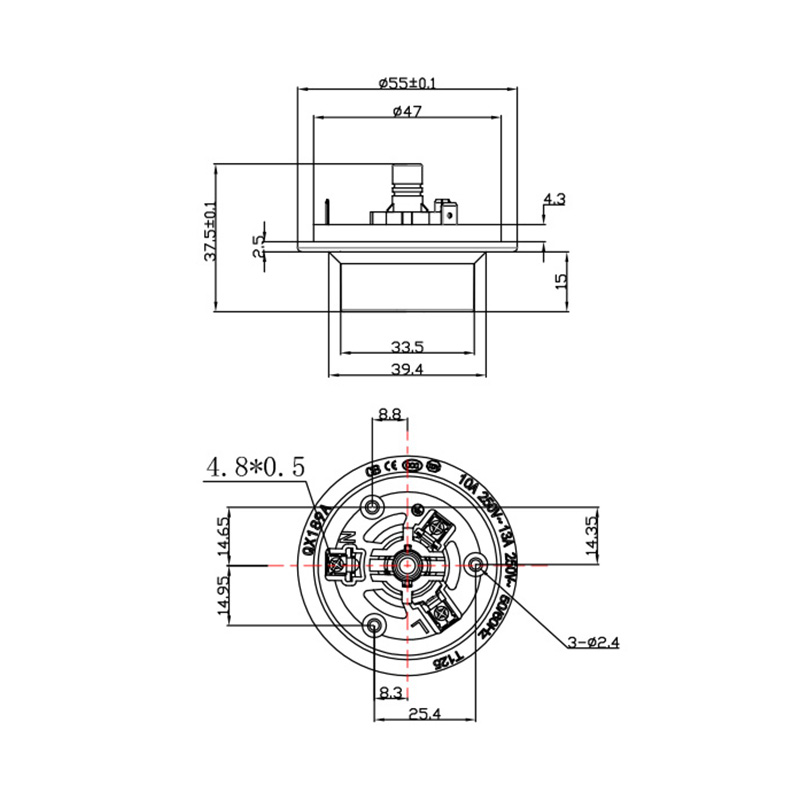

The housing is molded from high‑performance polyamide or phenolic resin that is glass‑filled for increased thermal stability, mechanical strength, and steam resistance. Dimensional precision in molding ensures the coupler base seamlessly integrates into automated kettle assembly lines, utilizing snap‑fit features or bayonet locks that provide tactile and audible confirmation of correct insertion. These alignment features reduce assembly errors, safeguard throughput, and protect internal terminals from deformation during handling.

What distinguishes this coupler base is its embedded smart water‑level detection capability. A dedicated sensing contact or integrated conductive pad connects to control circuitry or a microcontroller. During kettle placement and operation, this contact monitors real‑time presence of water, effectively serving as a dry‑boil prevention safeguard—if no water is detected, the power path is disabled regardless of thermostat state. By integrating this functionality into the base, Qianxun eliminates the need for separate sensors, wired harnesses, or load‑bearing components, simplifying both design and manufacturing while enhancing safety robustness.

Given the presence of steam and condensation within the kettle chamber, maintaining dielectric strength is a design priority. Qianxun's coupling base employs internal seals and weep‑channel architectures to channel moisture away from electrical contacts. This carefully managed moisture control prevents conductive tracking, corrosion, or dielectric breakdown over repeated steam exposure and thermal cycles—common stressors that can degrade lesser‑quality components.

Assembly inserts are secured via press‑fit or ultrasonically welded connections, retaining mechanical stability under vibration and thermal cycling. During production, automated optical systems verify correct terminal geometry and platen seating, while electrical tests confirm continuity, measure resistance, and assess dielectric breakdown strength (typically up to 1.5 kV AC). Samples are further subjected to steam aging and repetitive mate‑demate cycles, simulating long‑term real‑world kettle usage and revealing potential failure modes before shipment.

Serviceability is another strong design consideration. The coupler allows independent replacement of either the smart thermostat or the base unit should a failure occur. This modularity not only supports streamlined repairs and warranty handling but also aligns with sustainability trends, reducing waste by avoiding the replacement of the entire kettle base.

During real‑world operation, the coupler reliably performs several tasks: as water fills the kettle, the detection contact recognizes presence and enables power flow. As the kettle heats and steam rises, power is delivered through the primary conductors until the thermostat actuates. If water is absent, however, the smart loop prevents energization. After boiling and cooling down, the contacts reset, and the coupler remains ready for the next cycle.
