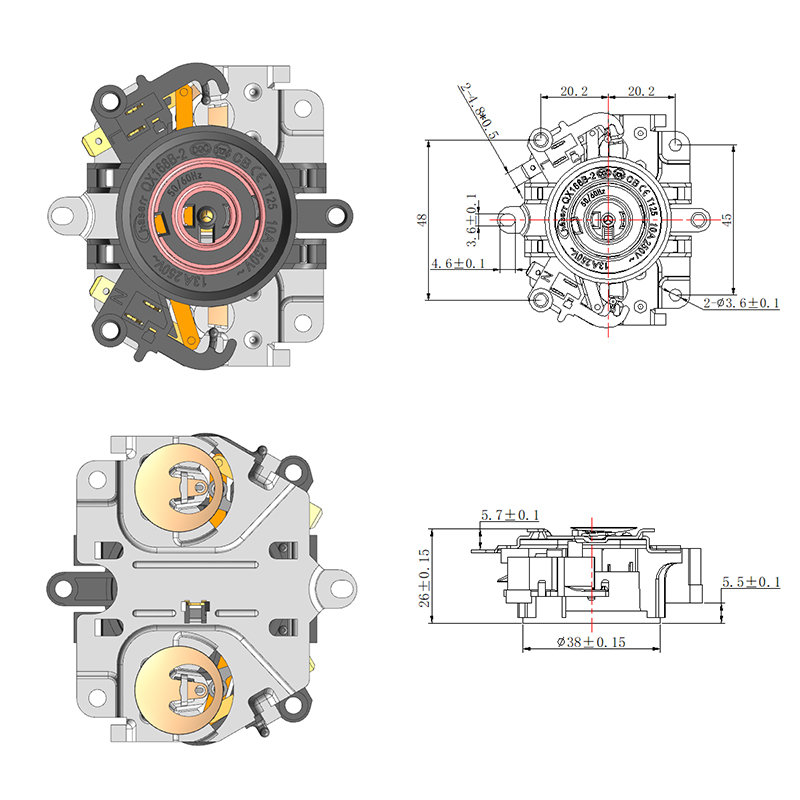

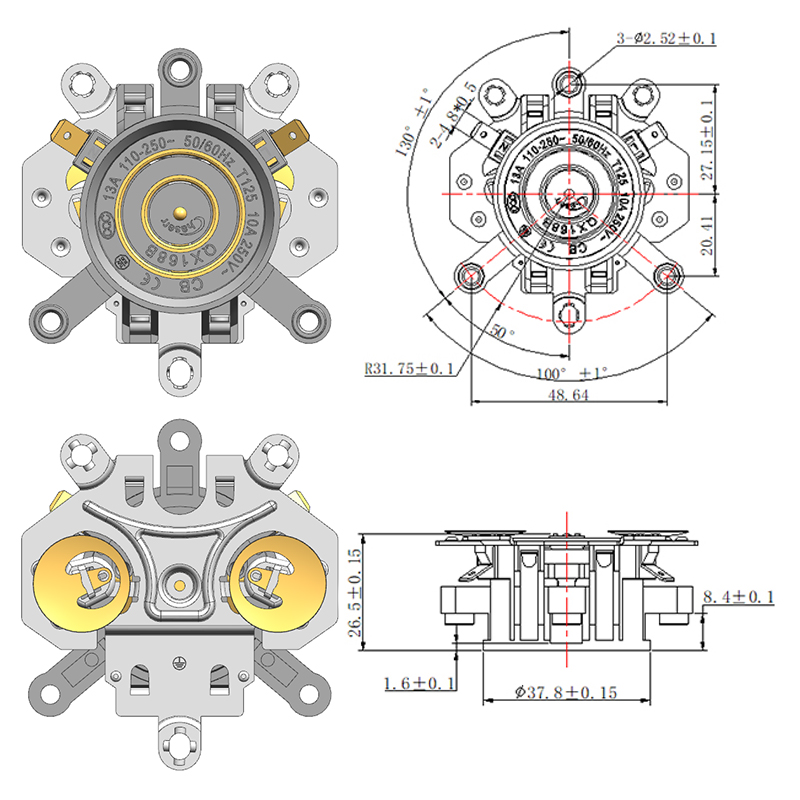

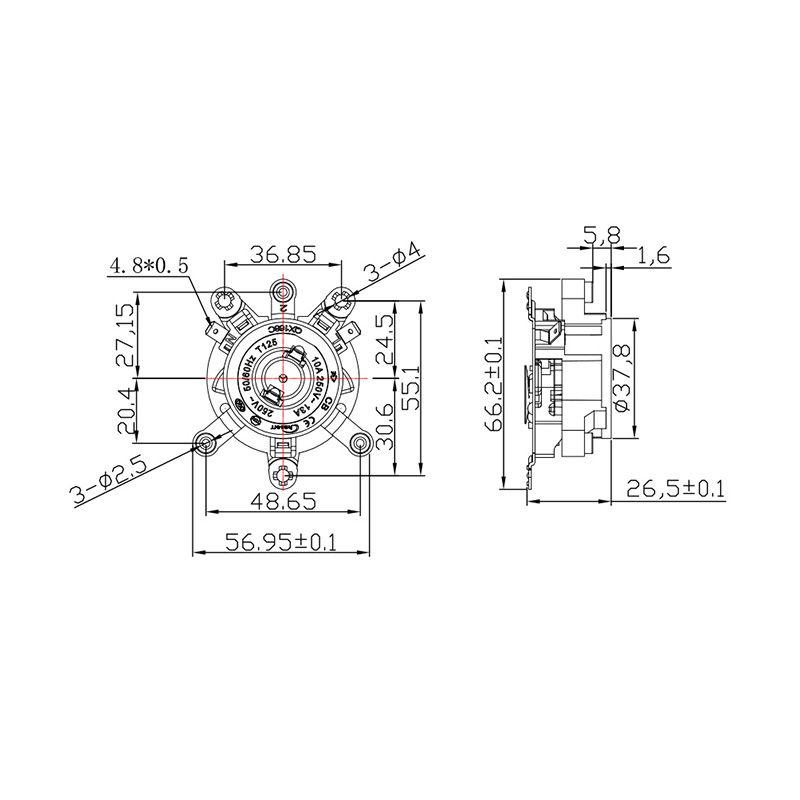

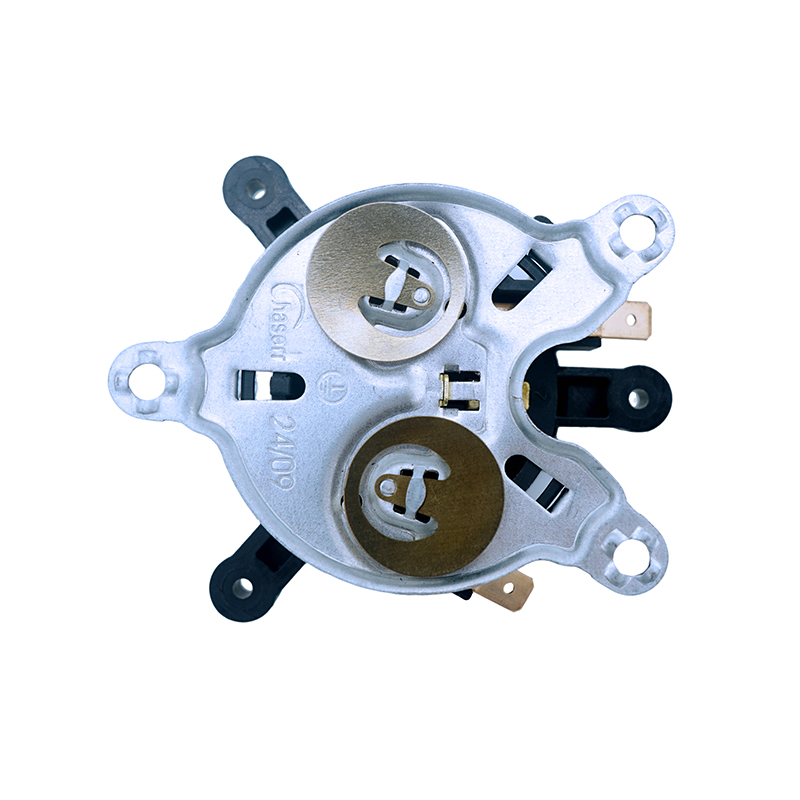

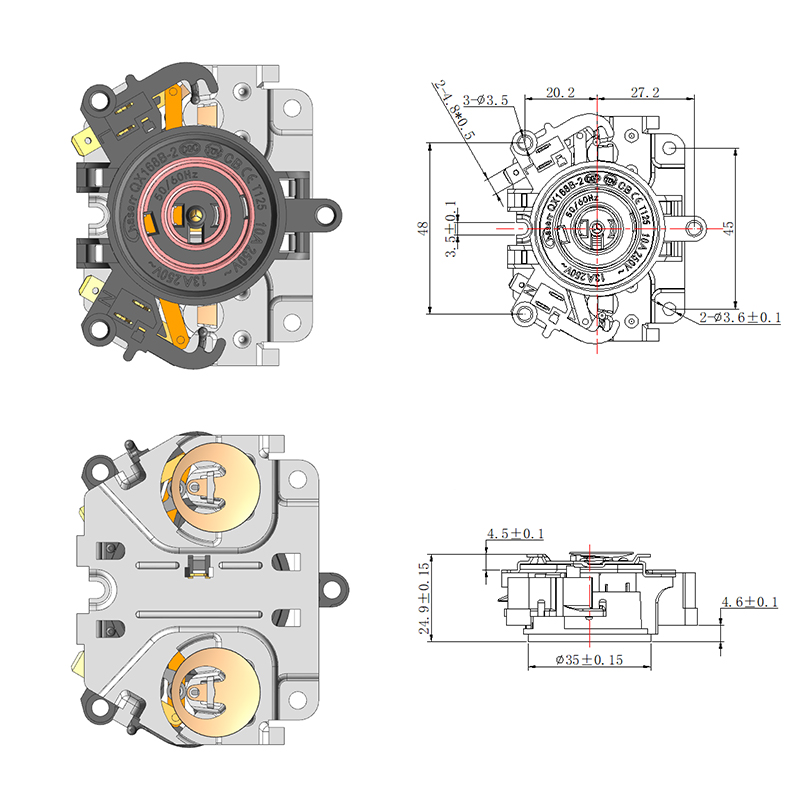

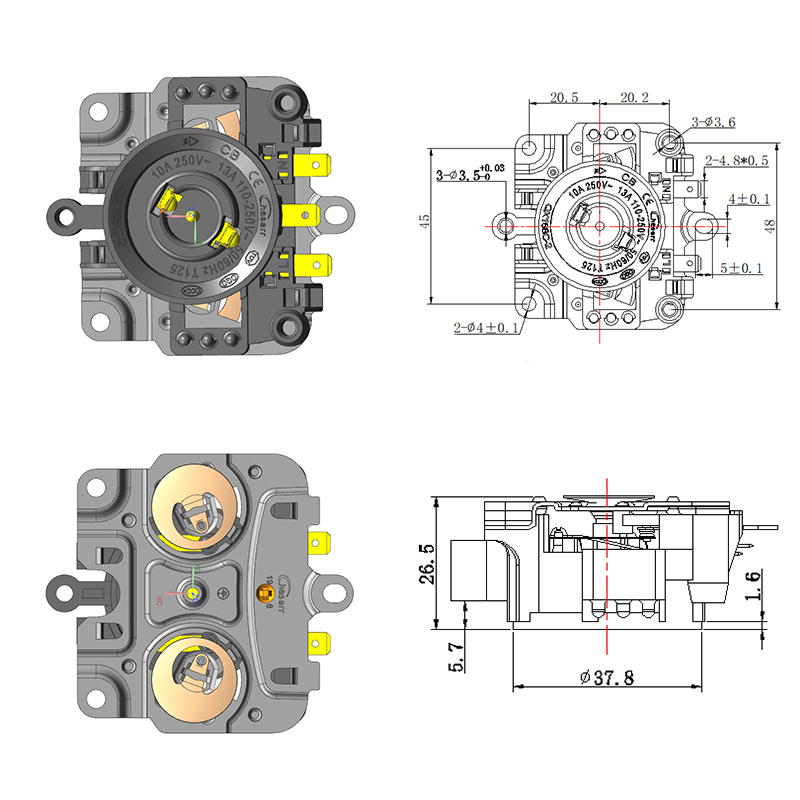

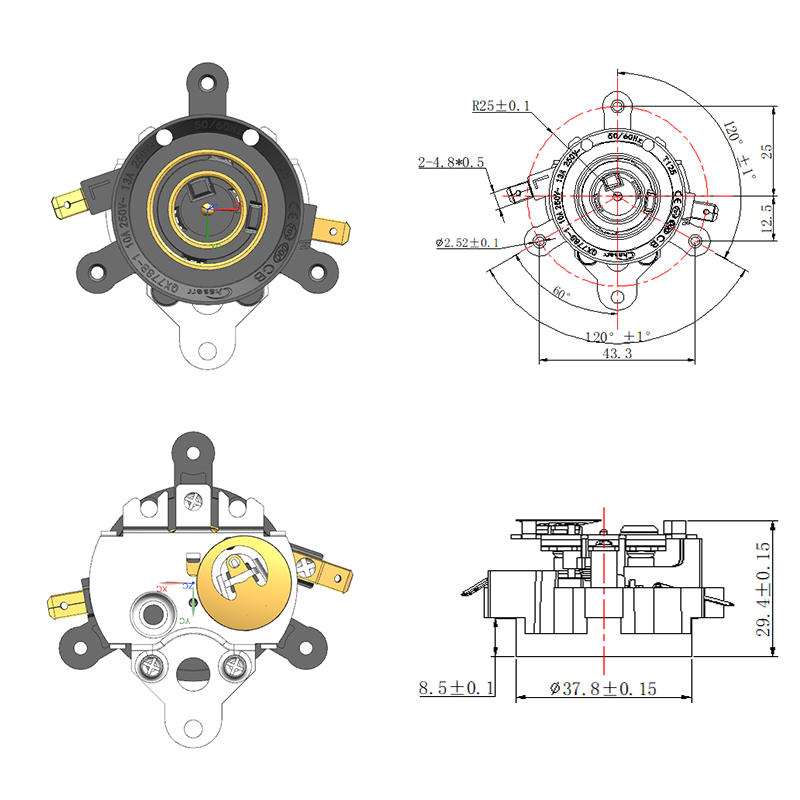

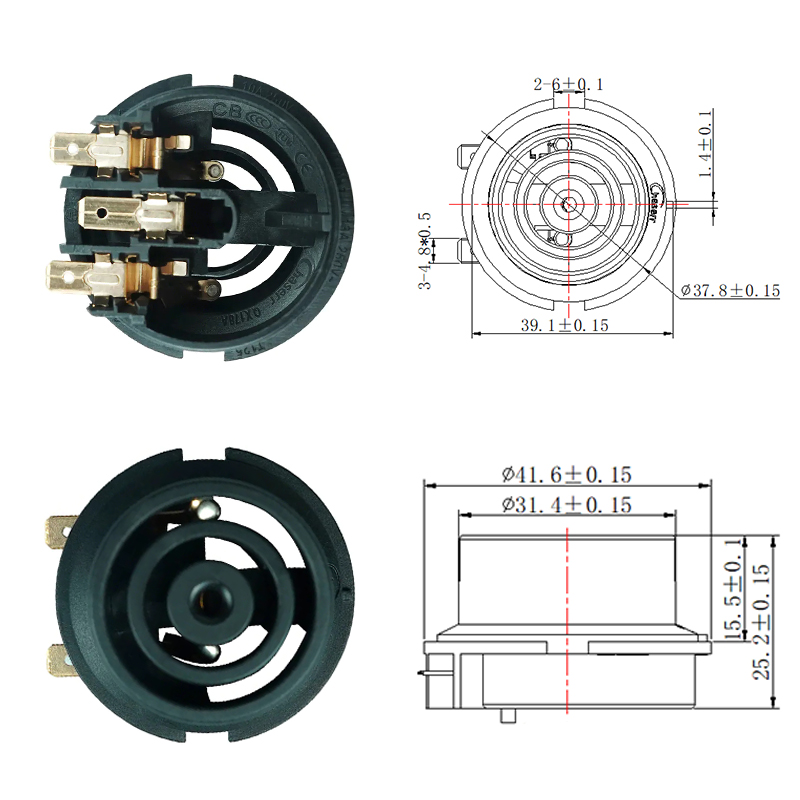

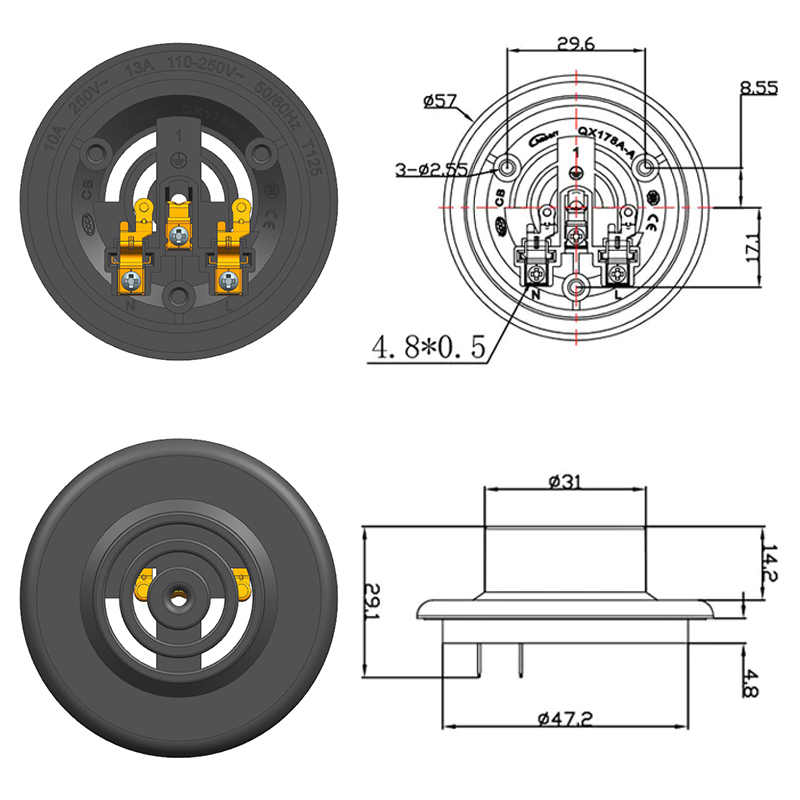

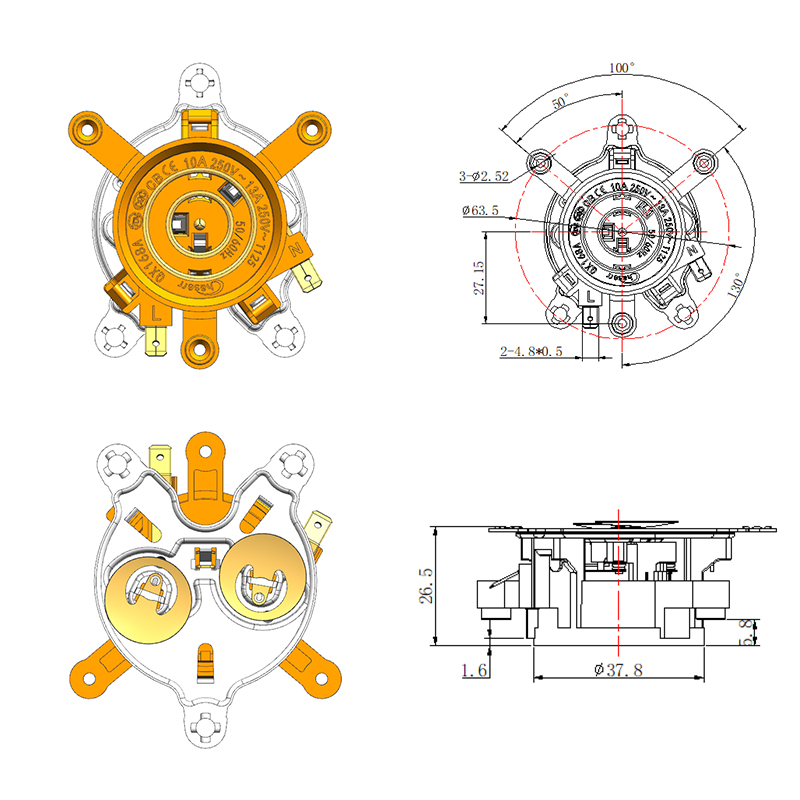

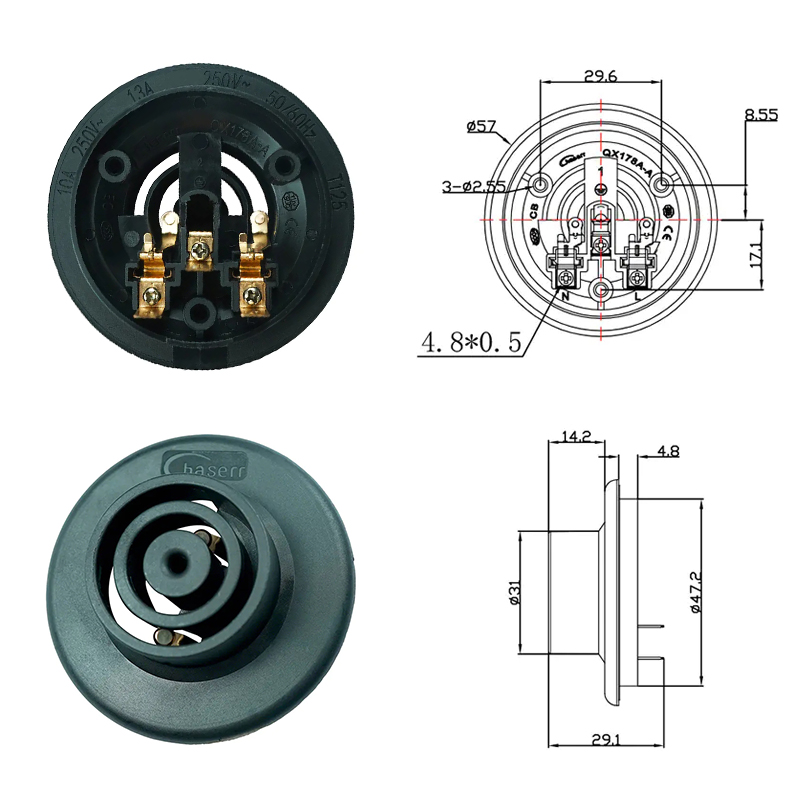

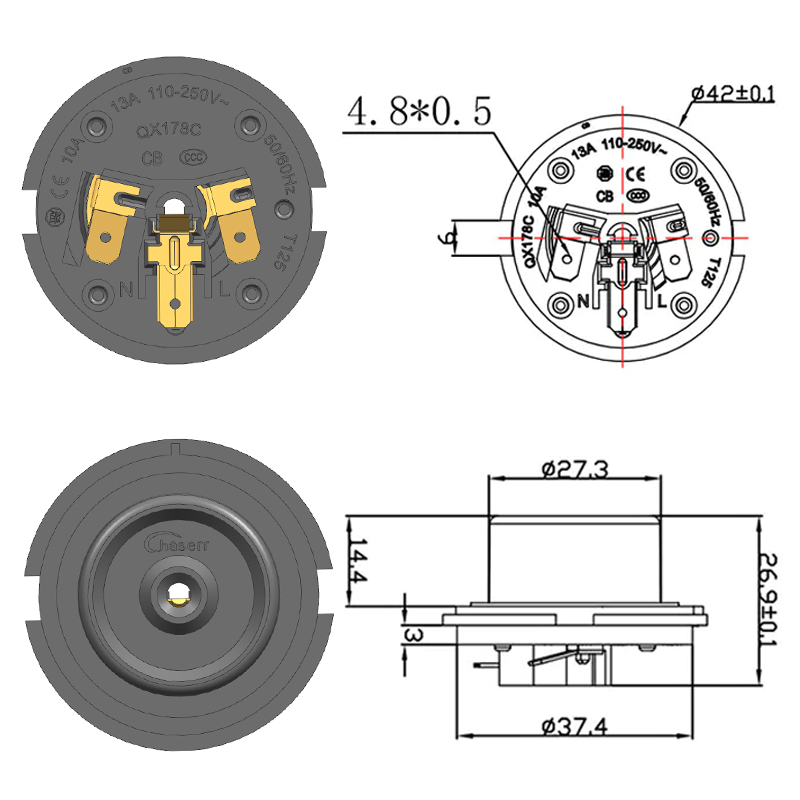

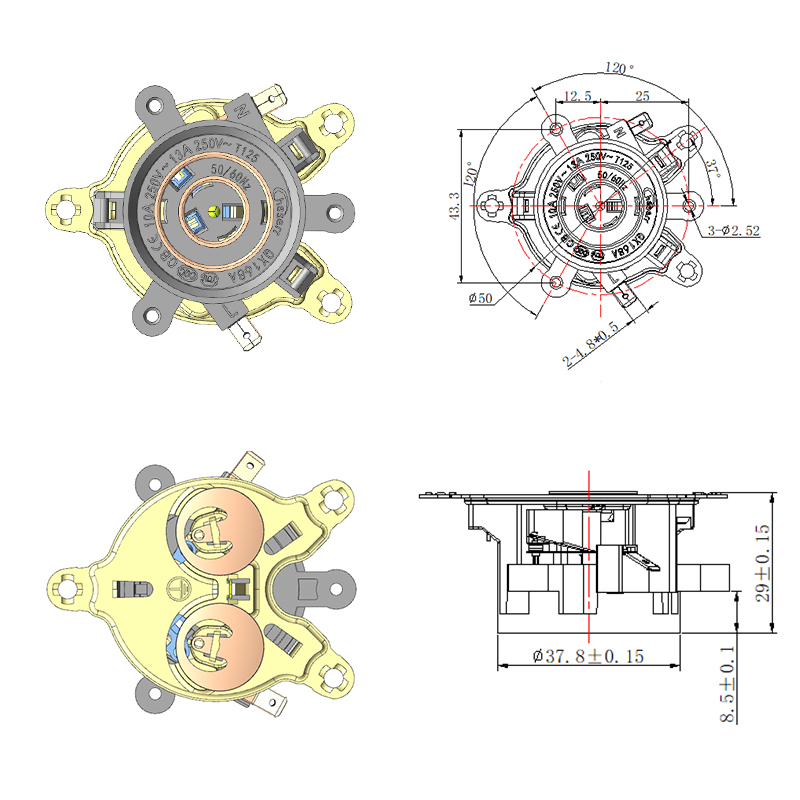

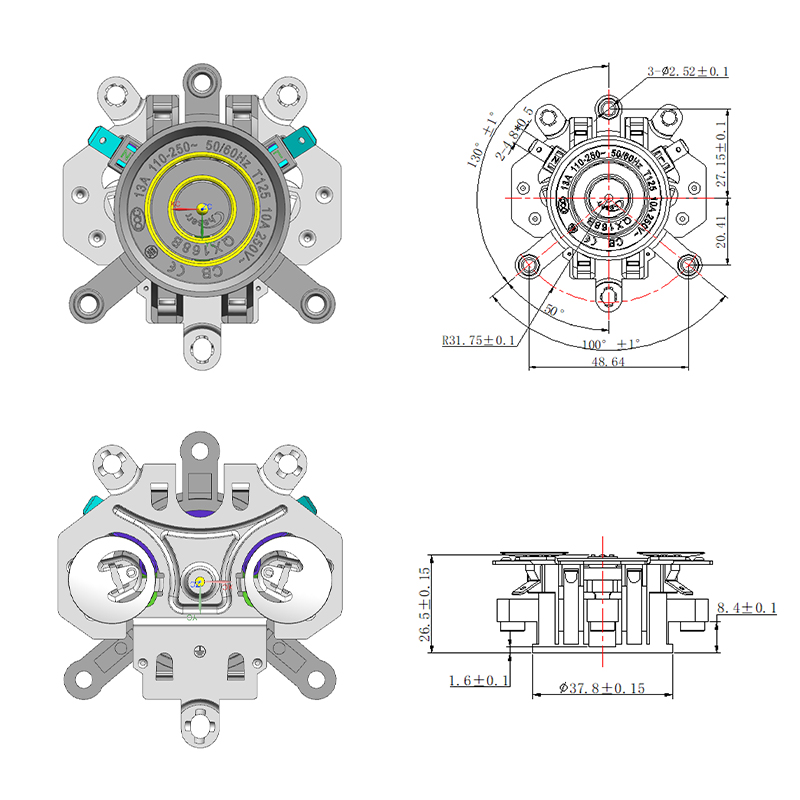

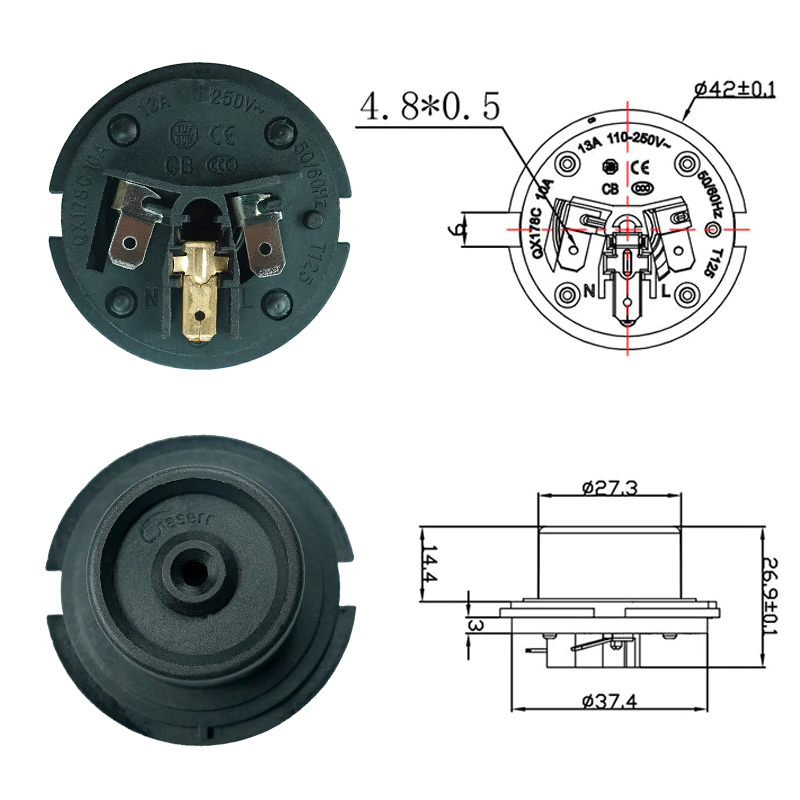

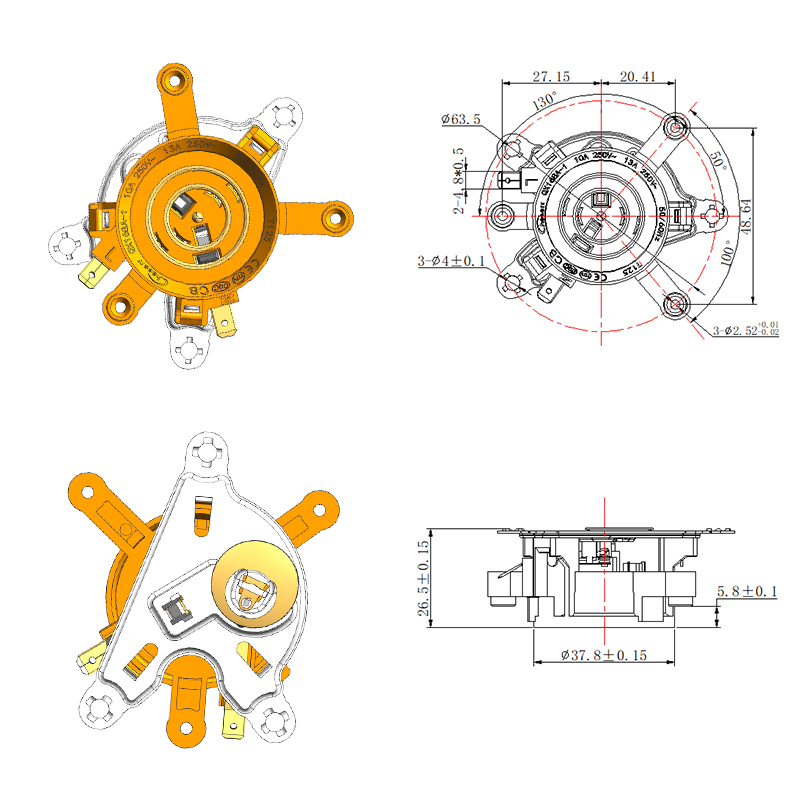

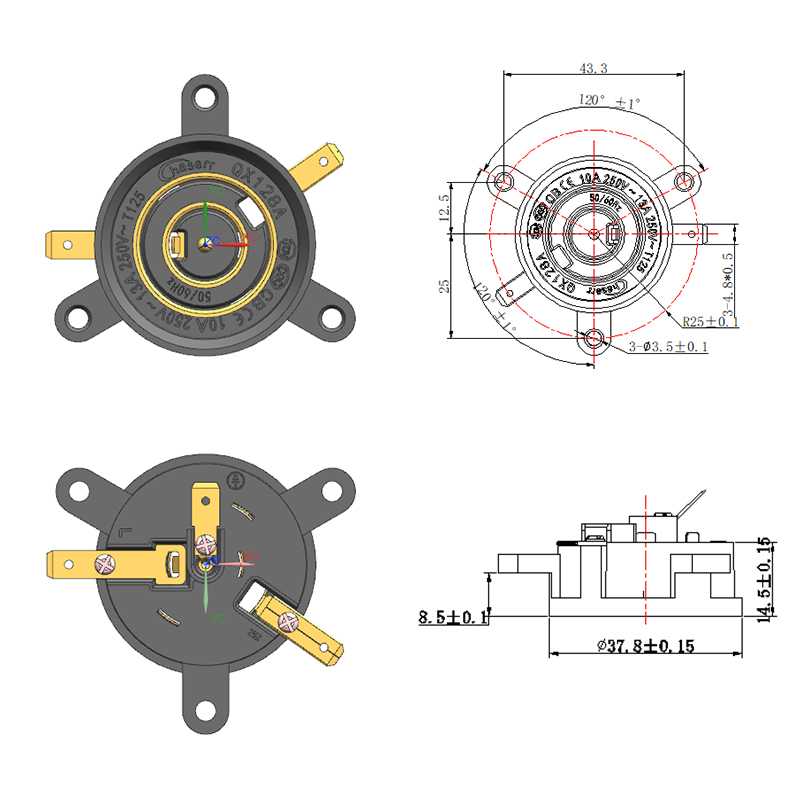

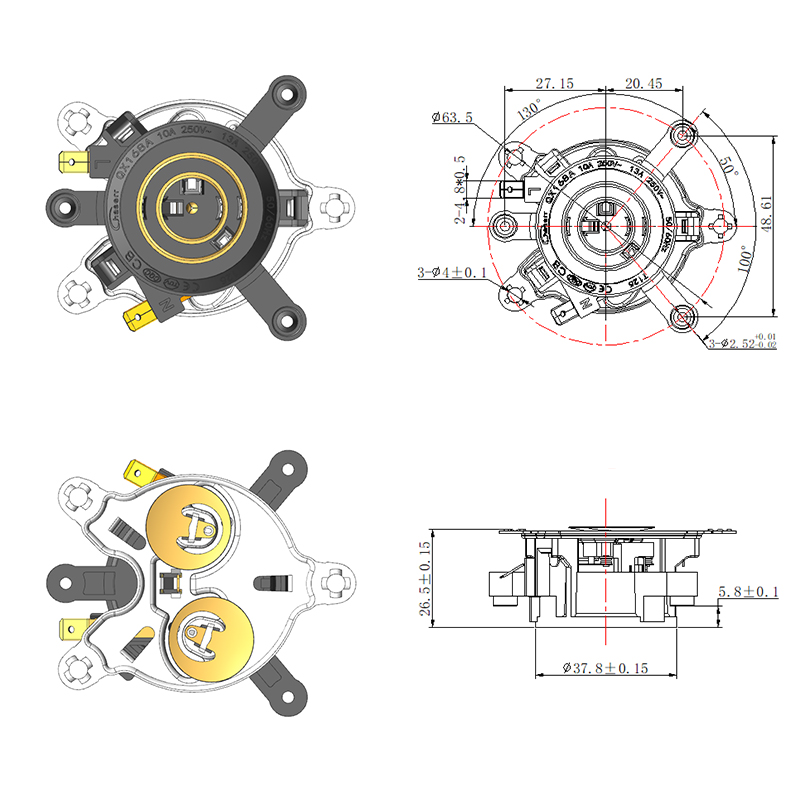

Automatic Three Ring Kettle Coupler

The automatic three‑ring kettle coupler developed by Qianxun represents a refined convergence of mechanical precision, electrical robustness, and ease of assembly. This coupling device sits at the crucial interface between the kettle's steam thermostat switch and its heating base, providing an uninterrupted power supply during normal operation and ensuring secure power interruption upon reaching the thermostat threshold. The three‑ring terminology reflects the design's triple‑contact mechanism: two primary conductive rings for power transfer and a third auxiliary ring reserved for sensing or signaling, such as LED indicators, thermal fuse, or control circuitry — an innovation that enhances both function and integration flexibility.

From an OEM manufacturer's standpoint, this coupler supports current ratings of up to 16 A at 250 V AC, aligning with high‑wattage kettle elements. The conductors are typically comprised of brass or copper alloys that are plated—most often with tin or nickel—to maintain low contact resistance and resistance to oxidation across numerous cycles. The physics of current flow at such ratings demands milliohm-level electrical resistance to prevent voltage drop or localized heating, and Qianxun achieves this consistently through meticulously designed contact geometry and preload pressure provided by internal springs.

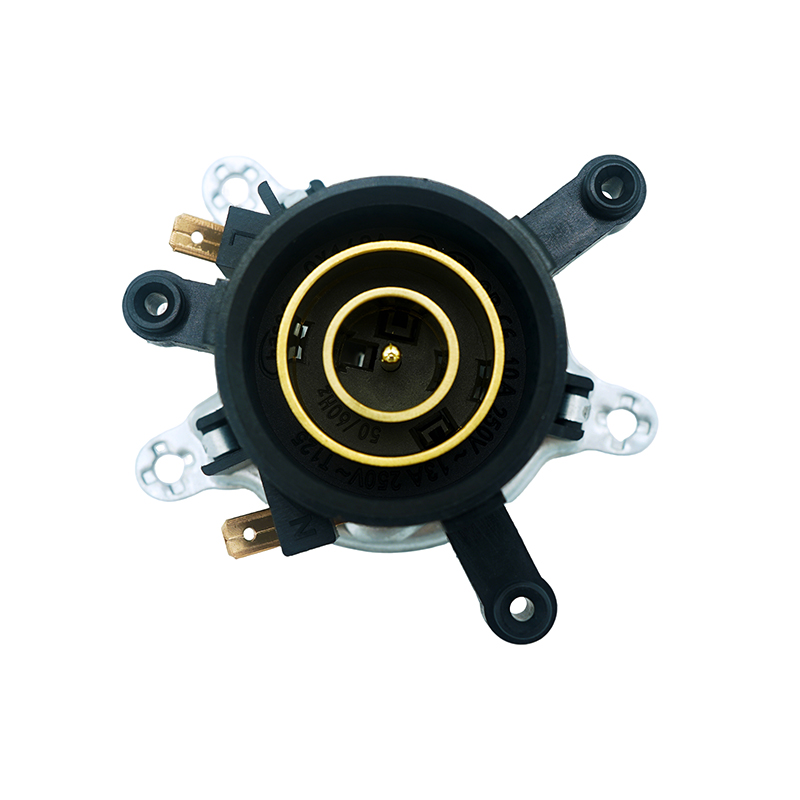

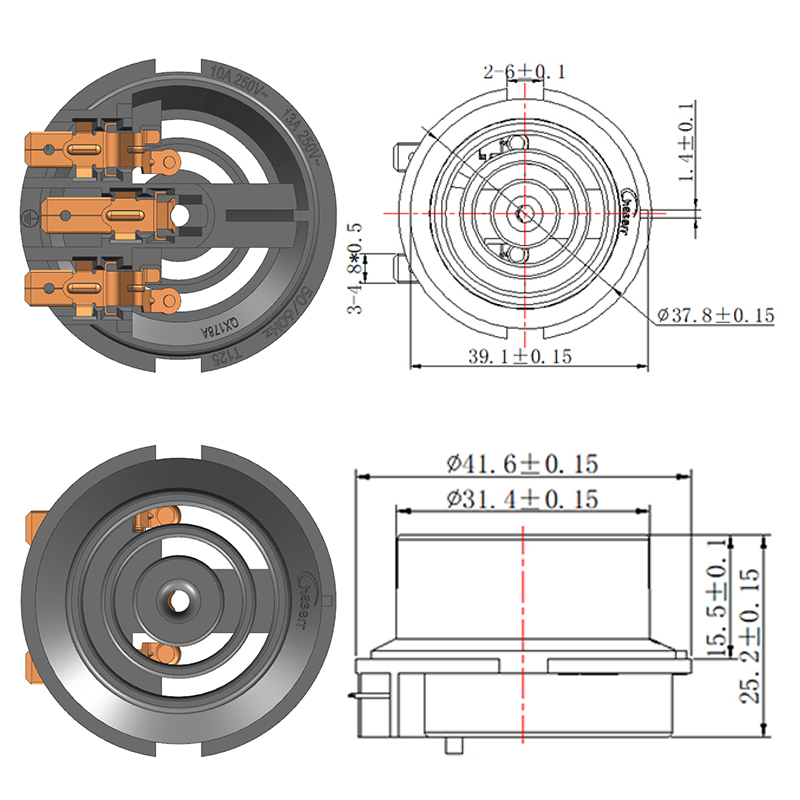

Mechanically, the coupler's housing is formed from engineering-grade insulating materials such as glass-filled nylon or phenolic resin, which are selected for their ability to withstand steam, high thermal cycling, and mechanical insertion forces. The precision molding incorporates keying features—three ring alignment tabs, spring‑loaded clips, or bayonet locks—ensuring repeatable and confident assembly on automated production lines. The distinct “ring” contacts are configured concentrically to improve contact area with the matching kettle base, supporting secure engagement even when the kettle is lifted or lightly jostled during use.

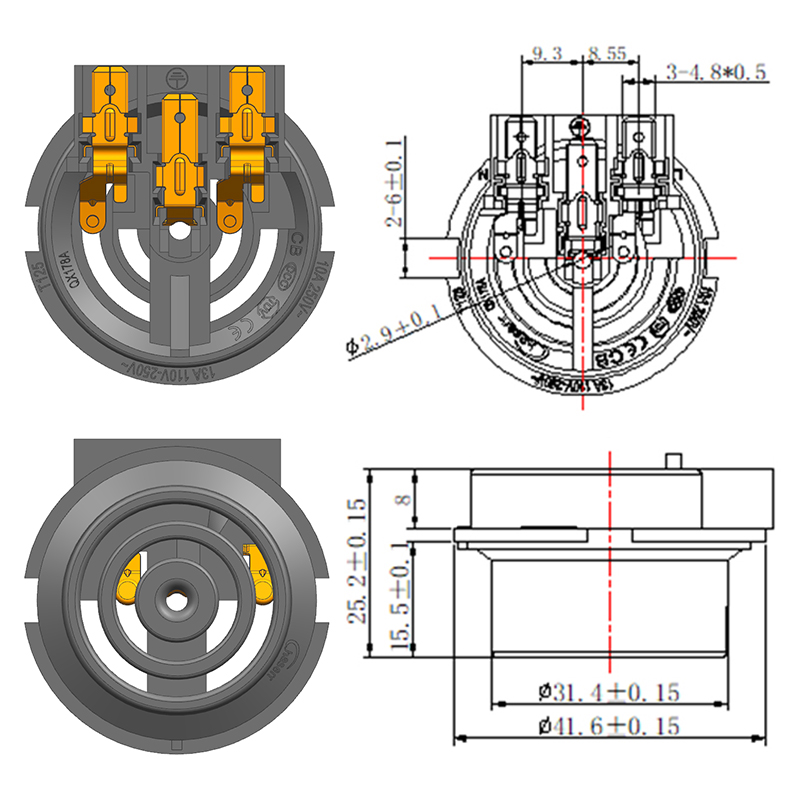

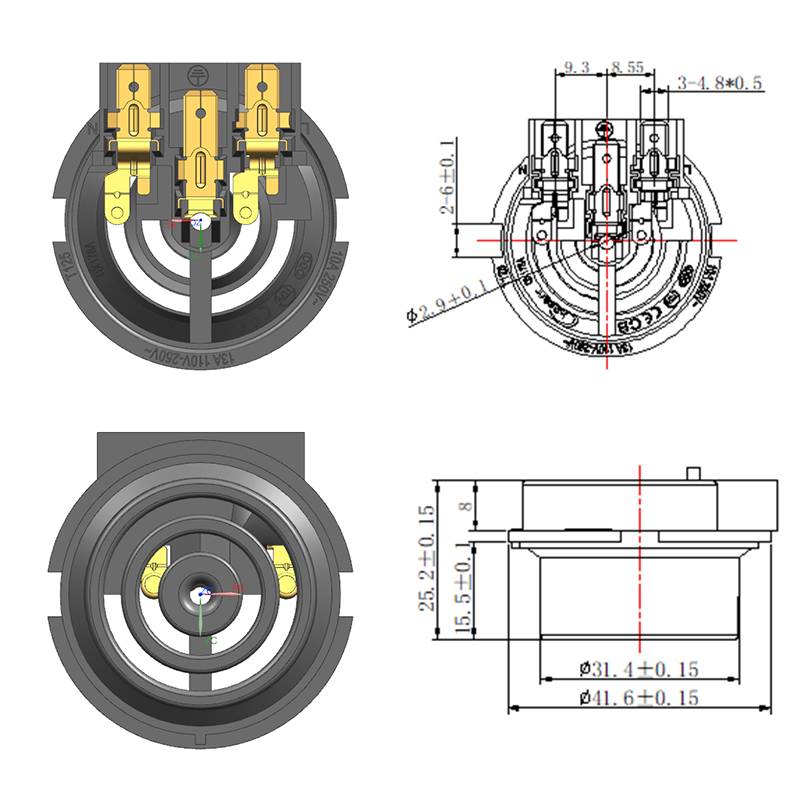

One of the distinguishing merits of the three‑ring design is its support for auxiliary functionality. While two rings carry the main heating load, the third ring provides a dedicated channel for auxiliary feedback or safety circuits. For example, it can connect to an LED indicator that lights when the kettle is heating or has completed its cycle, or attach to a thermal fuse that provides an additional fail‑safe layer. Qianxun positions this as a value‑added solution that enables OEMs to integrate more advanced features without requiring separate components or complex wiring harnesses.

Manufacturing process control underpins the coupler's quality. Metal terminals are inserted into the molded plastic housing using automated equipment and often secured via ultrasonic welding or press‑fit systems. Optical inspection systems confirm proper terminal placement and housing integrity. Couplers are then exposed to steam‑aging cycles, simulating typical kettle usage, which involves thousands of insert‑remove operations to validate mechanical durability and contact hygiene.

In real-world operation, the coupler plays a foundational role. As the kettle heats, current flows through the outer two rings into the heating element. Meanwhile, the third ring may activate an LED or monitor thermal fuse status. When the steam thermostat reaches its cut‑off point, its internal contacts open, and the coupler immediately disrupts the power circuit. Thanks to its concentric ring design, the interruption is secure even under damp or vibrating conditions. As the kettle cools and the thermostat resets, the rings reconnect automatically, reinstating full power readiness.

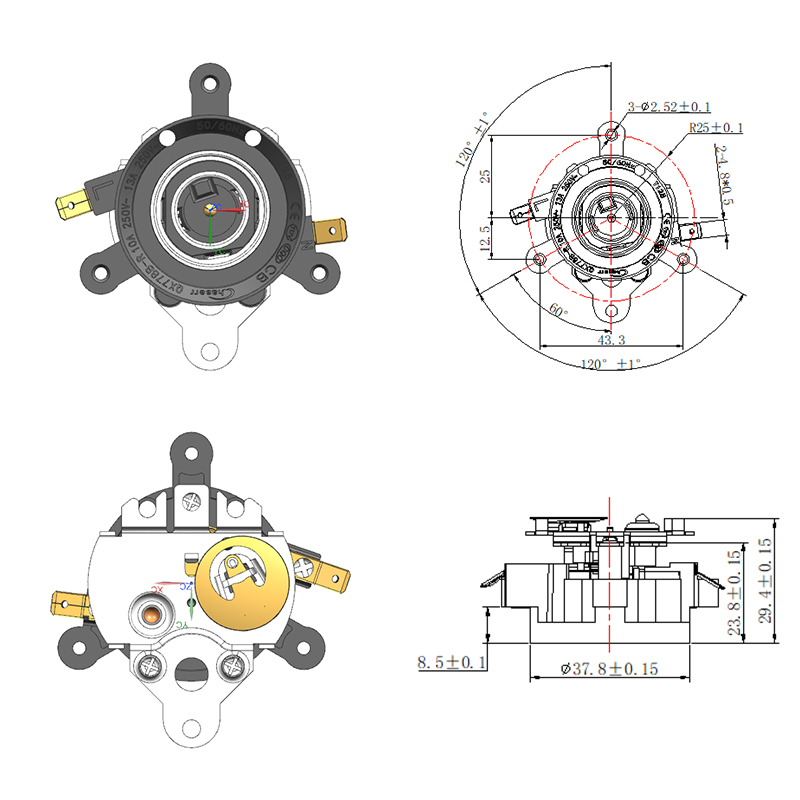

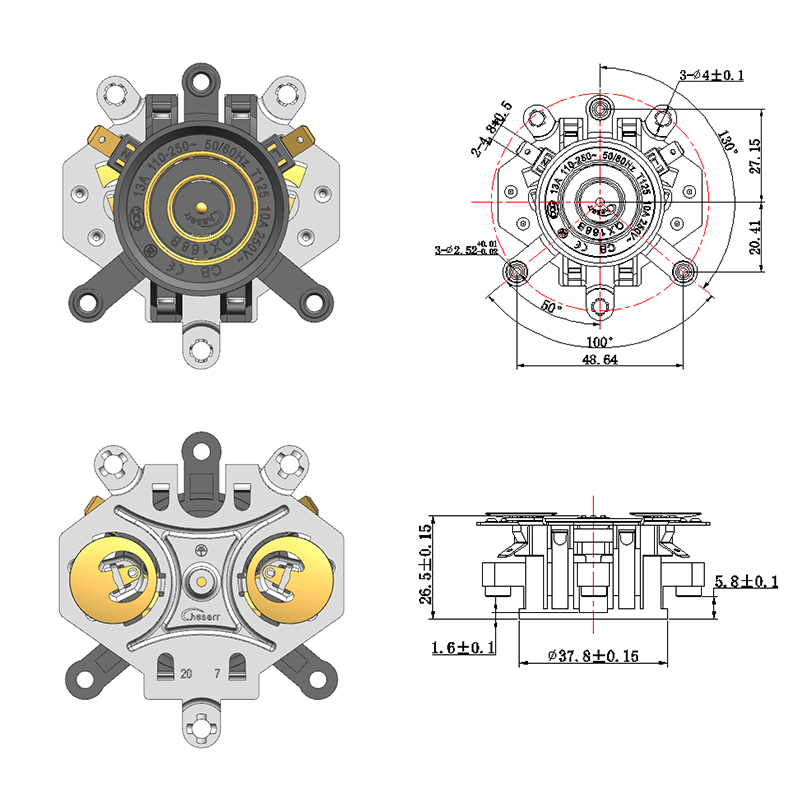

Qianxun's design is flexible enough to accommodate diverse kettle configurations. Provided adjustments to the housing can adapt contact preload and accommodate variant thermostat styles—auto‑reset, manual‑reset, with or without fuses—without retooling the kettle's base connector.
